WCS Parabolic Leaf Spring for Isuzu NPR NQR [Front]

← Front →
3 Leaf
Available to Order The part is ordered in as required from our supplier. Usually 2-5 business days, if in stock.
SKU: ISU-36P
SKU: ISU-36P
PositionFront
Leaves4
Main Pack1@70×15 Para, 3@70×17 Para

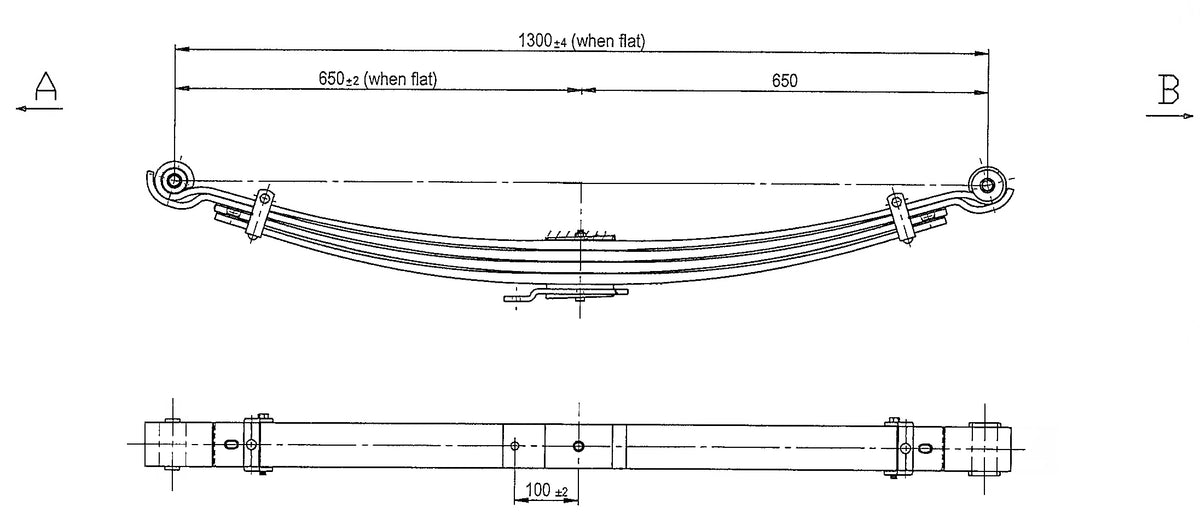

Leaf A / B650 / 650mm
Check this fits your vehicle Enter your vehicle to see the specs for it
Regular price $530.40
Regular price -15% $624.00 Sale price $530.40 each
Hurry! Sale ends in
9 22 13 14
Notes

4 Leaf Parabolic - 650 x 650 - If OEM is 2 leaf, remove a leaf.

Ask AI about this product

Specifications

Part NumberISU-36P
PositionFront
No. Leaves4
Main Pack Material1@70×15 Para, 3@70×17 Para
Leaf A Dimension650mm
Leaf B Dimension650mm
Bush Front3179
Bush Rear3179H
Centre Bolt5012

Fits

Isuzu NPR70 with 3.1 T Front Axle capacity
Isuzu NPR71 2.7 T Front axle capacity.
Isuzu NPR75 MEDIUM 300 Post 2003
Isuzu NQR400 and NQR450 with 3.1 T Front Axle capacity

Additional information

Weight 39 kg
Suspension Type

No. Leaves

4

Main Pack Mat.

1@70×15 Para, 3@70×17 Para

C/Bolt

5012

Bush Front

3179

Bush Rear

3179H

Leaf A Dim (mm)

650

Leaf B Dim (mm)

650
