WCS Swinging Shackle for Western Star 4900 & 5900
PositionFront
Regular price
$39.10
Regular price
-15%
$46.00
Sale price
$39.10
Hurry! Sale ends in
9
22
20
33
Notes
Shackle Plates
You'll Also Need
WCS Multileaf Spring for Western Star 4900/5900 Constellation (2000 on) with Screw Pins [Front] · WES-03
$1,189.15
WCS Parabolic Leaf Spring for Western Star 4900/5900 Constellation (2000 on) with Screw Pins [Front] · WES-03P
$1,414.40
Ask AI about this product

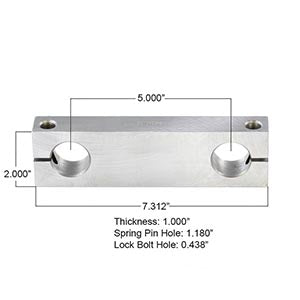

Specifications
| Part Number | 8195 |
| Position | Front |
| Hole Centre | 126.8mm |
| Pin Hole | 30mm |
| Plate Length | 185.5mm |
| Plate Width | 50.6mm |
| Spring Width | 100mm |
| OEM Reference | 371053407 |
| Cross Reference | Automann #M1831 |
| OEM Reference | Automann #M1831; 371053407 |
Fits
| Western Star 4900 & 5900 – CONSTELLATION POST 2000 with Screw Pins Multi-leaf Steer |
Additional information
| Weight | 1.42 kg |
|---|---|
| Suspension Type |
Front |
| Pin Hole |
30mm |
| Hole Centre |
126.8mm |
| Spring Width |
100mm |
| Plate Length |
185.5mm |
| Plate Width |
50.6mm |
| Plate Thick |
25.4mm |
| OEM Reference |
371053407 |
| Cross Reference |
Automann #M1831 |
